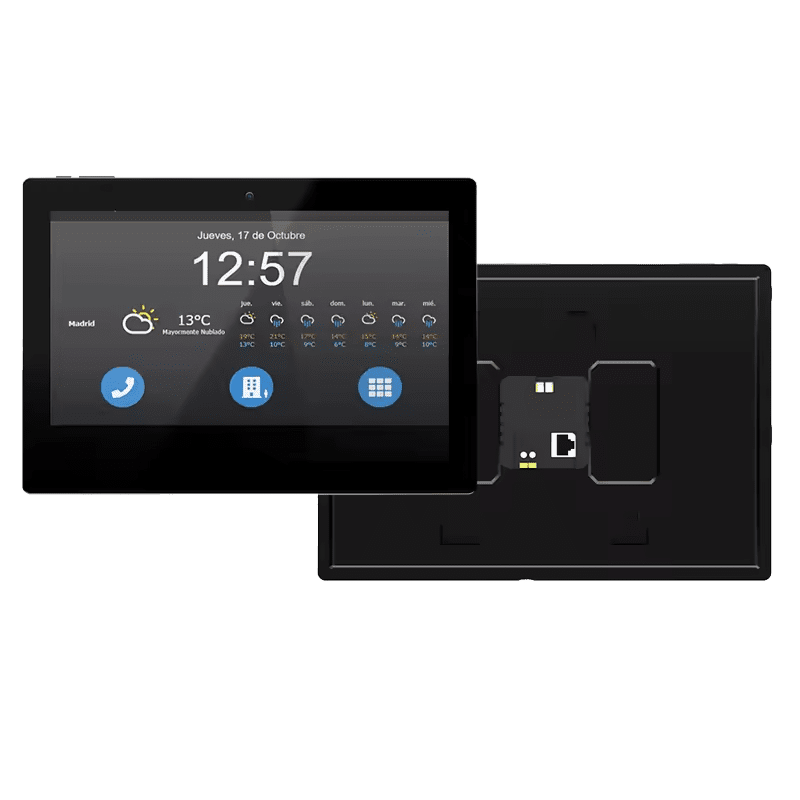

GS-T2E-TPA10-M2u 10.1″ Flagship Enterprise Smart Automation Touch Hub
Command your entire building infrastructure from a single, breathtaking canvas with the GS-T2E-TPA10-M2u Smart Touch Control Panel. Sporting a spacious, ultra-bright 10.1-inch IPS multi-touch display, this elite flagship terminal is driven by a lightning-fast Rockchip RK3568 Quad-Core processor running a highly adaptable Android 11 OS. Built for luxury residential estates, smart hotel penthouses, and enterprise boardrooms, it seamlessly combines a local smart gateway, a multi-zone background music center, a physical RS485 controller, and an HD video intercom console into a stunning, low-profile wall masterpiece.
Key Features
-
Flagship Rockchip RK3568 Processing: Powered by an advanced Quad-Core ARM Cortex-A55 processor clocking up to 2.0GHz, paired with an expansive 2GB RAM (4GB optional) and 32GB ROM. Experience instantaneous panel response, zero-lag timeline monitoring, and robust handling of continuous 24/7 heavy automation scripts.
-
10.1″ Stunning IPS Display with Elite Brightness: Features a vibrant, high-contrast $1280 \times 800$ resolution IPS screen putting out an impressive 500 nits of brightness. Crisp viewing angles ensure perfect dashboard visibility from anywhere in the room, even under bright architectural lighting.
-
All-In-One Intercom & Media Command Hub: Equipped with an integrated 2.0MP front-facing camera (5.0MP optional), dual beamforming microphones, and twin 1W high-fidelity speakers. Natively handles crystal-clear video intercom door station calls, localized security video streaming, and wide-format background music center playback.
-
Single-Cable PoE Network Stability: Features a native 10M/100M RJ45 Ethernet terminal supporting full Power over Ethernet (PoE). Channel high-speed network streams and absolute electrical power down a single cable, eliminating reliance on unstable Wi-Fi in high-density smart properties.
-
Industrial Protocol Mapping (RS485): Includes a dedicated physical RS485 communication line alongside BLE 5.2 and Wi-Fi arrays. Interface directly with heavy-duty commercial HVAC zones, central ventilation, motorized architectural louvers, or legacy serial modbus hardware arrays.
-
Tactile Hardware Side Controls: Features premium, low-profile physical buttons along the edge framework for rapid manual interactions—including Reset, Power toggles, and Volume +/- controls for fast adjustments without waking the main screen.
Technical Specifications
| Feature | Industrial Specification |
| Model Number | GS-T2E-TPA10-M2u |
| Display Panel | 10.1-Inch High-Contrast IPS Full-View Screen (500nits Output) |
| Processor (CPU) | RK3568 Quad-Core Cortex-A55 (Peaking up to 2.0GHz) |
| Memory Blueprint | 2GB RAM [4GB Option Available] / 32GB High-Speed ROM Storage |
| Operating Engine | Android 11 Platform (Open-Architecture Development Ready) |
| Network Interfaces | Power over Ethernet (PoE) RJ45 / Standard Wi-Fi / Bluetooth LE 5.2 |
| Physical I/O Ports | RS485 (A, B Terminal Block) / USB Type-C Interface |
| Optical Configuration | 2.0MP Front Camera (Upgradable to 5.0MP for High-Res Intercom) |
| Audio Hardware | Built-in High-Sensitivity Microphone + 2x 1W Integrated Speakers |
| Chassis Proportions | Slimline Profile ($247.1\text{mm} \times 173\text{mm} \times 12\text{mm}$) |
| Dual Infeed Power | PoE Support or Direct Hardwired DC 12V/24V Power Rails |
Why Choose the GS-T2E-TPA10-M2u?
The GS-T2E-TPA10-M2u represents the absolute peak of central smart building control. While smaller 4 or 5-inch panels are ideal for single-room light switches, this massive 10.1-inch flagship station acts as the primary brain of your building architecture. It provides room planners and system integrators with enough visual real estate to host complete building maps, multi-camera CCTV security grids, deep equalizer matrices, and complex environment sliders simultaneously. Built into a beautiful, ultra-slim 12mm frame and reinforced with heavy aluminum hardware layers, it elevates your property’s wall architecture into a high-tech center of pure control.
