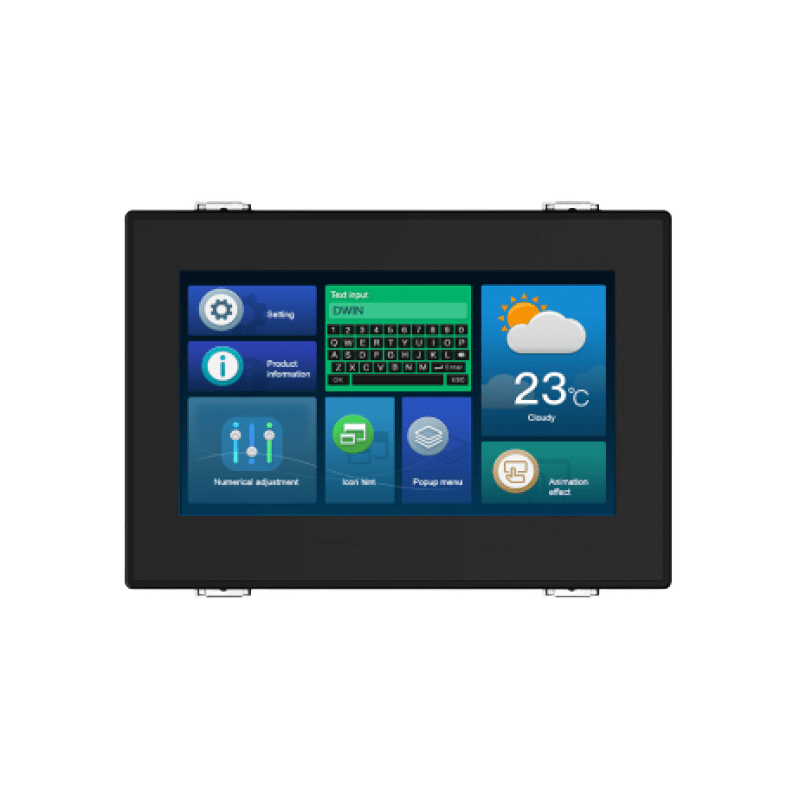

WIN 7.0″ Commercial-Grade HMI Intelligent LCD Touch Display with Enclosure (DMG80480C070_15WTR)
Streamline your industrial machinery and automation interfaces with the DWIN DMG80480C070_15WTR 7.0-Inch HMI Smart Display. Housed in a rugged protective shell, this commercial-grade smart LCM (Liquid Crystal Module) features a reliable resistive touch screen backed by a crisp $800 \times 480$ resolution TN-TFT-LCD panel capable of displaying 262K colors. Equipped with dual RS232 and RS485 serial interfaces, onboard storage, and an integrated buzzer, it serves as an incredibly stable, ready-to-deploy hardware solution for complex industrial controls, medical equipment, and automation dashboards.
Key Features
-
High-Tech Smart Display Architecture: Operating as an intelligent standalone HMI GUI driver, this module reduces the processing load on your main MCU by handling complex graphical interfaces, touch regions, and screen transitions internally.
-
Industrial Dual-Interface Communication: Built for seamlessly interfacing with standard control equipment. Features native onboard support for both RS232 and RS485 communication protocols, ensuring long-range data stability and wide PLC/microcontroller compatibility.
-
Onboard 8MB NOR Flash Storage: Packed with 8 Megabytes of dedicated non-volatile storage to securely store high-resolution icons, fonts, interface UI graphics, static images, and custom audio assets directly on the device.
-

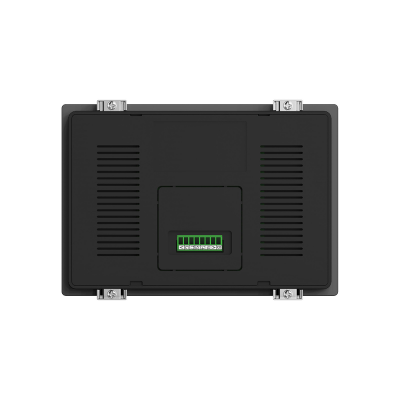

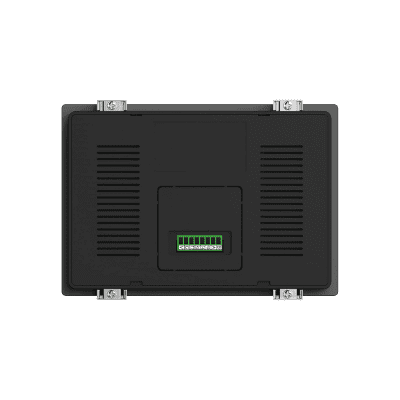

Rugged Out-of-the-Box Shell Enclosure: Comes pre-fitted with a professional protective commercial housing, protecting internal circuit boards from dust, debris, and structural damage during integration into panels or control kiosks.
-
Responsive Resistive Touch Processing: Features a precision 4-wire resistive touchscreen matrix that responds flawlessly to fingertips, heavy industrial gloves, or mechanical styluses—critical for rough factory floors and outdoor equipment setups.
-
Dual Interface Update Methods: Effortlessly push new GUI firmware updates, UI design revisions, or media libraries to the panel using an onboard SD card slot or directly over the online serial port debugging terminal.
Technical Specifications
| Feature | Industrial Specification |
| Brand & Manufacturer | DWIN Technology |
| Model Number | DMG80480C070_15WTR |
| Display Panel Matrix | 7.0-Inch TN-TFT-LCD Smart LCM |
| Resolution Profile | $800 \times 480$ Pixels (WVGA Widescreen Formatting) |
| Color Rendering Index | 262K Colors (Vibrant Interface Output) |
| Touch Sensor Style | Heavy-Duty Resistive Touch Screen |
| Communication Array | 1x RS232 Serial Line / 1x RS485 Differential Bus |
| Memory Hardware | 8MB Onboard NOR Flash Memory |
| Luminance Peak | 200 nit Screen Brightness |
| Optics Viewing Angles | TN Angle Performance: 70° Left / 70° Right / 50° Up / 70° Down |
| Hardware Peripherals | Built-in Acoustic Alert Buzzer & SD Card File Interface Slot |
Package Includes
-
1 x DWIN DMG80480C070_15WTR 7.0-Inch Smart HMI Display Unit (With Protective Shell)
Why Choose the DWIN DMG80480C070 Series?
The DWIN DMG80480C070_15WTR strips away the complexity of traditional low-level LCD programming. Instead of wasting hundreds of hours coding primitive pixel layouts or managing raw framebuffers on your main processor, its intelligent DWIN GUI framework lets you deploy rich, high-tech control assets effortlessly. Combined with its rugged protective enclosure, clear 200-nit panel visibility, and dual RS232/RS485 fieldbus hardware lanes, it stands as an elite UI/UX choice for developers demanding rapid implementation and industrial-grade operational uptime.
